Plotting orbits

orbix.viz turns an orbit into a figure in one call. It is installed with the viz extra (pip install 'orbix[viz]') and is built on eyepiece, so every figure here follows the same conventions as any other figure in the eyepiece fleet: stateless ax-first functions, a PlotResult back, and style resolved from hwostyle at call time.

Every page starts the same way: activate a style mode, import the plotting module, and declare the document’s cast.

import hwostyle
import matplotlib
import jax.numpy as jnp
import numpy as np
import eyepiece as ep

from orbix import KeplerianOrbit
from orbix import viz

hwostyle.use("dark")

# Docs-builder concerns, not lines to copy into your own scripts. hwostyle asks
# for Inter/Helvetica/Arial and a CI builder has none of them, so name the face
# matplotlib always ships as a last resort -- otherwise every figure emits a
# findfont warning. And render at a resolution that holds up on a high-DPI
# screen; the notebook default of 100 dpi does not.
matplotlib.rcParams["font.sans-serif"] = list(
    matplotlib.rcParams["font.sans-serif"]
) + ["DejaVu Sans"]
matplotlib.rcParams["figure.dpi"] = 160

styles = ep.SourceStyles(["planet b", "planet c", "planet d"])

One orbit on the sky

plot_sky_track propagates an orbit and draws its sky-plane track in arcseconds: RA offset on the x axis (increasing to the left, per the astronomical convention), Dec offset on the y axis, the star at the origin, and an equal aspect so the ellipse is not distorted.

MSUN_KG = 1.988409870698051e30

# The elements are named because the posterior fan further down is built
# around this same orbit.
A_AU, ECC, INC_RAD = 1.3, 0.31, 1.05
BIG_OMEGA_RAD, SMALL_OMEGA_RAD, M0_RAD = 2.3, -0.7, 0.4
T0_D = 2460000.0

# Kepler's third law for a solar-mass star, so the track spans exactly one
# period and the ellipse closes instead of stopping in mid-air.
PERIOD_D = A_AU**1.5 * 365.25
PERIAPSIS_D = T0_D - M0_RAD * PERIOD_D / (2.0 * np.pi)

orbit = KeplerianOrbit(
    a_AU=A_AU, e=ECC, W_rad=BIG_OMEGA_RAD, i_rad=INC_RAD,
    w_rad=SMALL_OMEGA_RAD, M0_rad=M0_RAD, t0_d=T0_D,
)
t_jd = jnp.linspace(T0_D, T0_D + PERIOD_D, 240)

# A second cast for the 3D views: three near-coplanar planets, the way a
# planetary system actually sits. Keeping the mutual inclinations small (7 to
# 16 degrees) keeps the z excursion to about a quarter of the in-plane extent,
# so the orbits read as nested ellipses seen from above rather than as thin
# slivers pointed at the camera.
PLANETS = ["planet b", "planet c", "planet d"]
SYS_A_AU = np.array([0.72, 1.30, 2.35])
SYS_ECC = np.array([0.05, 0.21, 0.40])
SYS_BIG_OMEGA = np.array([2.20, 2.35, 2.50])
SYS_INC = np.array([0.12, 0.20, 0.28])
SYS_SMALL_OMEGA = np.array([-0.40, -0.70, 0.90])
SYS_M0 = np.array([0.00, 2.10, 4.30])

system = KeplerianOrbit(
    a_AU=SYS_A_AU, e=SYS_ECC, W_rad=SYS_BIG_OMEGA, i_rad=SYS_INC,
    w_rad=SYS_SMALL_OMEGA, M0_rad=SYS_M0, t0_d=np.full(3, T0_D),
)

# The same three planets one at a time. plot_orbit applies a single style to
# every track it is handed -- a fan of draws for one planet is one source -- so
# giving each planet its own colour means one call per planet.
one_planet = [
    KeplerianOrbit(
        a_AU=SYS_A_AU[k:k + 1], e=SYS_ECC[k:k + 1],
        W_rad=SYS_BIG_OMEGA[k:k + 1], i_rad=SYS_INC[k:k + 1],
        w_rad=SYS_SMALL_OMEGA[k:k + 1], M0_rad=SYS_M0[k:k + 1],
        t0_d=np.array([T0_D]),
    )
    for k in range(3)
]

OUTER_PERIOD_D = 2.35**1.5 * 365.25
t_system = jnp.linspace(T0_D, T0_D + OUTER_PERIOD_D, 240)

result = viz.plot_sky_track(
    orbit, t_jd, Ms_kg=MSUN_KG, dist_pc=10.0,
    style=styles["planet b"], iwa=0.06,
)

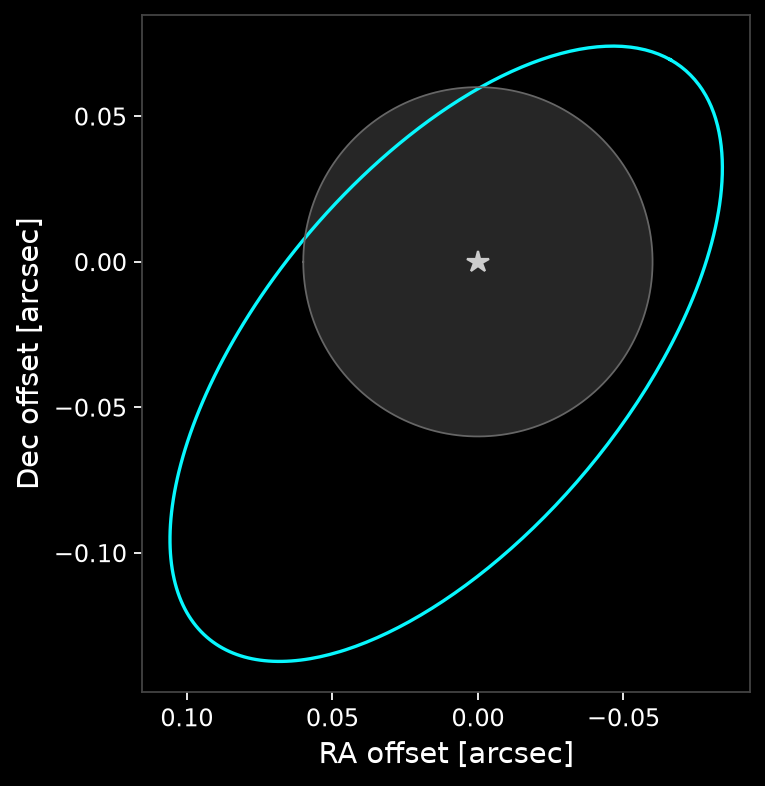

The shaded disk is an inner working angle: the region a coronagraph cannot see into, in the same arcsecond units as the track.

A posterior fan

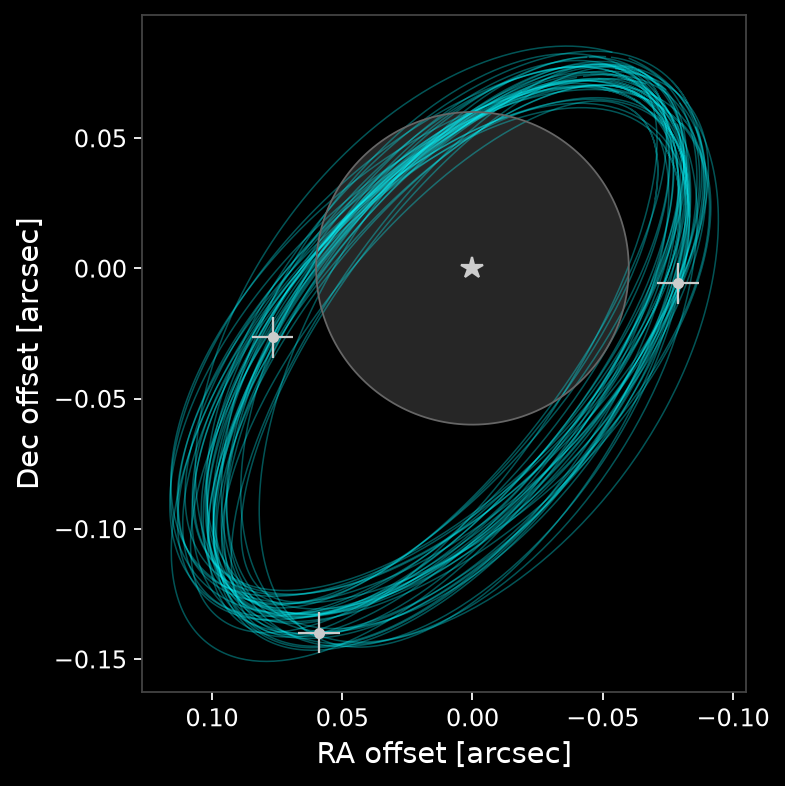

A (K,)-batched orbit draws as a fan of candidate tracks, faded by per-track weights. KeplerianOrbit.from_period builds the batch directly from the parameterization orbit-fitting code samples, so posterior draws become a fan in two calls.

rng = np.random.default_rng(7)

# The measured epochs are sampled from the orbit above and perturbed by the
# measurement error, so the fan and the data describe the same system.
SIGMA_ARCSEC = 0.008
t_obs = T0_D + np.array([70.0, 250.0, 430.0])
ra_true, dec_true = orbit.position_arcsec(
    t_jd=jnp.asarray(t_obs), Ms_kg=MSUN_KG, dist_pc=10.0
)
epochs = (
    np.asarray(ra_true)[0] + SIGMA_ARCSEC * rng.standard_normal(3),
    np.asarray(dec_true)[0] + SIGMA_ARCSEC * rng.standard_normal(3),
    np.full(3, SIGMA_ARCSEC),
)

K = 40
draws = dict(
    T_d=PERIOD_D * (1.0 + 0.04 * rng.standard_normal(K)),
    e=np.clip(ECC + 0.04 * rng.standard_normal(K), 0.0, 0.9),
    cos_i=np.clip(np.cos(INC_RAD) + 0.06 * rng.standard_normal(K), -1.0, 1.0),
    W_rad=BIG_OMEGA_RAD + 0.08 * rng.standard_normal(K),
    cos_w=np.cos(SMALL_OMEGA_RAD + 0.15 * rng.standard_normal(K)),
    sin_w=np.sin(SMALL_OMEGA_RAD + 0.15 * rng.standard_normal(K)),
    tp_d=PERIAPSIS_D + 12.0 * rng.standard_normal(K),
)
fan = KeplerianOrbit.from_period(**draws, Ms_kg=MSUN_KG)
result = viz.plot_sky_track(
    fan, t_jd, Ms_kg=MSUN_KG, dist_pc=10.0,
    style=styles["planet b"], iwa=0.06, data=epochs,
)

Every function that accepts an orbit also accepts bare arrays, so tracks loaded from a file draw through the same door: viz.plot_sky_track((ra, dec)).

The orbit in three dimensions

plot_orbit draws the star-centric orbit in AU through eyepiece.trail. With no style it uses the star-chart look: markers in the mode’s text color (white dots on this dark background) over a transparent dashed gray path, with the 3D panes painted in the background color so the scene reads as space. Passing style= opts into that source’s solid color instead. Set the camera before calling it; the per-point depth cue on a still is baked from the camera at call time. marks adds the exact periapsis (diamond) and the line of nodes (triangles mark where each orbit pierces the sky plane).

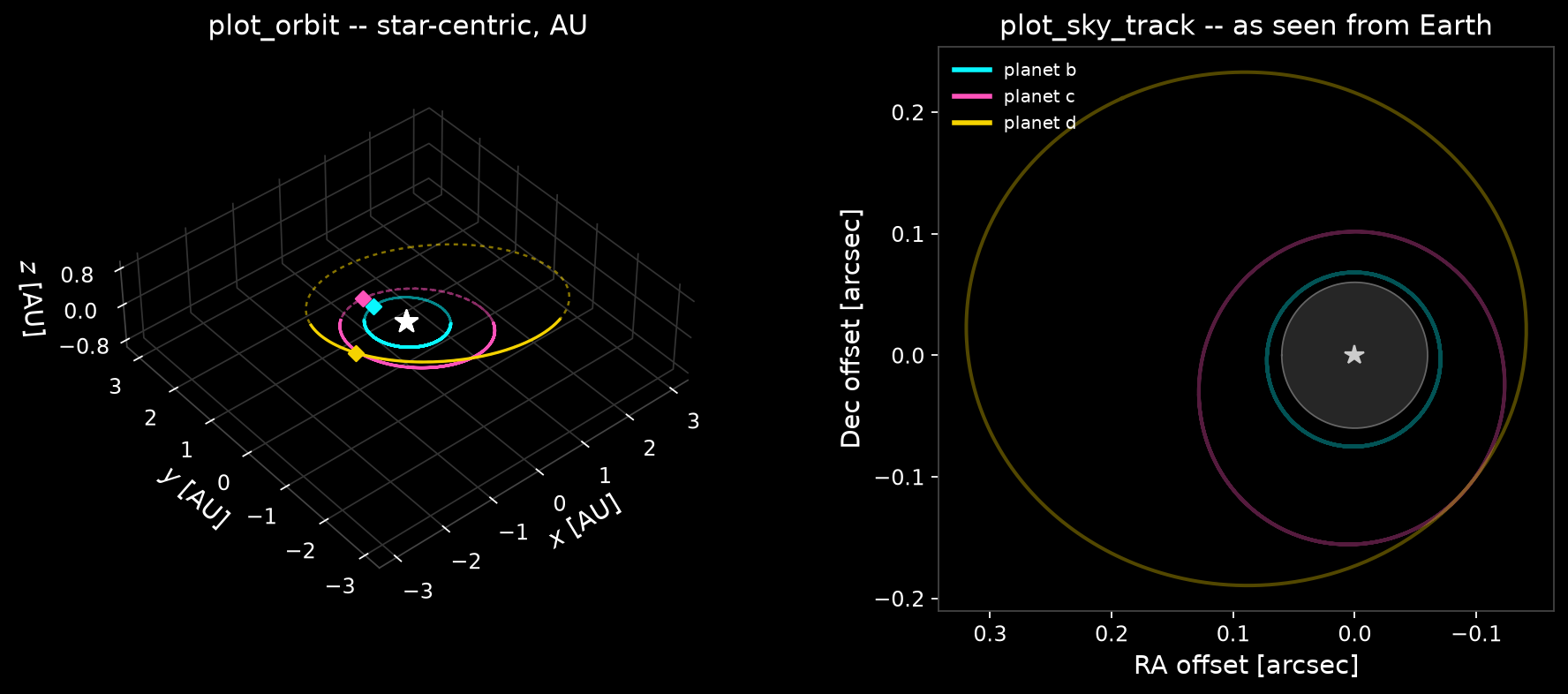

This draws the three-planet system beside the same system on the sky, so the two doors can be read against each other. SourceStyles ties them together: each planet keeps its colour in both panels, so the outer yellow ring at 2.35 AU on the left is the yellow ring reaching 0.24 arcsec on the right. Point the 3D camera down on the system’s plane rather than at its edge – the default view sits 79 degrees off an orbit normal like this one, which squashes an ellipse to a fifth of its width and reads as a sliver aimed at the viewer.

import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
from matplotlib.ticker import MaxNLocator

fig = plt.figure(figsize=(11.5, 4.8), layout="constrained")
gs = fig.add_gridspec(1, 2, width_ratios=[1.25, 1.0])
ax3d = fig.add_subplot(gs[0], projection="3d")
ax3d.view_init(elev=42.0, azim=-130.0)
axsky = fig.add_subplot(gs[1])

for name, planet in zip(PLANETS, one_planet):
    viz.plot_orbit(
        planet, t_system, Ms_kg=MSUN_KG, ax=ax3d,
        style=styles[name], marks={"periapsis"},
    )

# plot_orbit sizes the 3D box as a cube. That is right for a steep orbit, but a
# near-coplanar system then leaves about three quarters of the height empty.
# Shrinking the z limit and the box aspect by the SAME factor fills the frame
# and keeps the scale equal on all three axes; the tick locator keeps the
# shorter axis from crowding its labels together.
z_half = 1.15 * float(np.max(np.abs(
    np.asarray(system.propagate(t_jd=t_system, Ms_kg=MSUN_KG)[0])[:, 2]
)))
xy_half = ax3d.get_xlim()[1]
ax3d.set_zlim(-z_half, z_half)
ax3d.set_box_aspect((1.0, 1.0, z_half / xy_half))
ax3d.zaxis.set_major_locator(MaxNLocator(3))
ax3d.set_title("plot_orbit -- star-centric, AU")

viz.plot_sky_track(
    system, t_system, Ms_kg=MSUN_KG, dist_pc=10.0, ax=axsky,
    colors=[styles[name]["color"] for name in PLANETS], iwa=0.06,
    fan_kw={"lw": 1.8},
)
axsky.set_title("plot_sky_track -- as seen from Earth")
axsky.legend(
    handles=[Line2D([], [], color=styles[n]["color"], lw=2.5, label=n)
             for n in PLANETS],
    loc="upper left", frameon=False, fontsize=9,
)

<matplotlib.legend.Legend at 0x7a222402ba70>

Animation

animate_orbit returns a lazy eyepiece.Animation: nothing renders until a sink is asked for, and one animation can go to several sinks in one pass (.save("orbit.mp4", "orbit.gif")). The 3D defaults do the whole star-chart presentation in one call: dashed gray paths, a moving dot per orbit that swells gently on the near side of the trajectory, and a slow single-axis azimuth sweep, with elevation held. rotate takes a dict of (start_deg, stop_deg) pairs and holds any axis you leave out, so the call below sweeps azimuth alone; rotate="auto" instead travels a cone about the orbit normal, and None holds the camera still.

Place the sweep with care. The projected area of a planar ellipse goes as cos(tilt) to the orbit normal, so an azimuth window that changes the tilt changes the drawn size and the orbits read as inflating rather than turning. A near-coplanar system makes this easy: its normal is only 14 degrees off the rotation axis, so a window centred on that normal’s azimuth holds the drawn size to 1.02x, where one placed a quarter turn away gives 1.18x. Elevation 46 leaves the camera 58 degrees off the normal, far enough from face-on that the depth cue still reads.

The history argument controls the trail: "all" accumulates from the first epoch, an integer keeps a trailing window, "none" moves the head markers alone. The base marker size is the anchor the depth cue swells around, so it is where physical meaning lives: size_by_radius maps planet radii onto marker diameters. The same call with kind="sky" animates the sky-plane track instead.

from IPython.display import HTML

t_anim = jnp.linspace(T0_D, T0_D + OUTER_PERIOD_D, 72)

anim = viz.animate_orbit(
    system, t_anim, Ms_kg=MSUN_KG, kind="3d", history="none",
    base_ms=viz.size_by_radius([1.0, 3.9, 11.2]), fps=15,
    rotate={"azim": (-150.0, -110.0), "elev": (46.0, 46.0)},
)
HTML(anim.jshtml(dpi=130))

Once Loop Reflect
